To use:

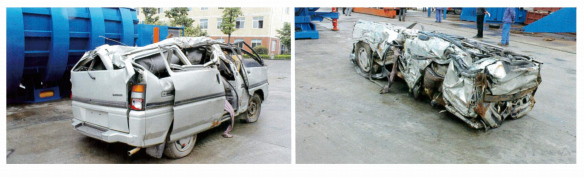

MCB-400 mobile car baling press is mainly to pack a variety of low-carbon light and thin production and life scrap steel, scrapped cars, steel production of light metal structural parts into scrap steel bale in line with the charge, is the ideal equipment for steel mills, non-ferrous metal smelting industry, precision casting industry and raw material manufacturers.
Features:
1. Large volume and opening area, large feeding amount, high working efficiency, it is very convenient for the processing of large materials, especially for the use of centralized feeding and taking.
2. Machine, electrical and hydraulic integrated control, easy to learn, intuitive and convenient operation.
3. PLC control, high reliability, easy maintenance.
4. Each moving part adopts hydraulic drive, stable work and high work efficiency.
5. Mobile, one device can be used in multiple yards, greatly reducing the equipment input of multiple yards.
Technical parameters:
| No. | Project name | Unit | Values | Notes | |
| 1 | Nominal force | Pushing pressure head | ton | 400 | 2x200 double-cylinder |
| Circular flap | ton | 160 | 2x80 double-cylinder | ||
| Right Angle flap | ton | 240 | 3x80 three-cylinder | ||
| outrigger | ton | 120 | 4x30 four-cylinder | ||
| 2 | Tank size | LxWxH | m m | 5000x3600x1100 | |
| 3 | Block size | LxWxH | m m | 800x1000x650 | |
| 4 | Lump density | kg/m³ | ≥1200 | ||
| 5 | Weight of pack | Kg | ≥700 | ||
| 6 | Oil cylinder stroke | Ejector cylinder | m m | 2085 | |
| Flip-top cylinder | m m | 700 | |||
| Outrigger cylinder | m m | 1500 | |||
| 7 | Single cycle time | S | 100 | ||
| 8 | Hydraulic system pressure | MPa | 31.5 | ||
| 9 | Hydraulic system flow | L/min | 642 | 500+142 | |
| 10 | Engine rating | kw | 150 | ||
| 11 | Rated engine speed | rmp | 1800 | ||
