Features:
The machine adopts the upper compression and two side compression of waste shaping and section feeding mode, with the characteristics of wide shear inlet, deep feeding cavity, etc. The shear material grows into a square block, and the production efficiency is remarkable. Hydraulic transmission and automatic electrical control system, with smooth operation, reliable work, simple operation and so on. The series of cutting machine 500800,1000,1250 models are available for users to choose.
|

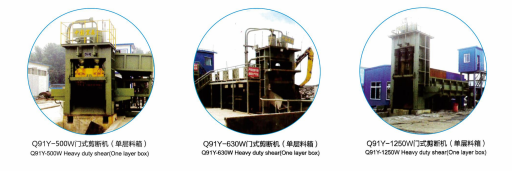

Model |
Maximum shear force (KN) | Tank size (mm) | Scissors width (mm) | Output ( t/h) | Shear frequency (full stroke) | Motor power (KW) |
|
Q91Y-500W |
5000 | 6000x1500x900 | 1500 | 9～12 | 3～4 | 45x4 |
|
Q91Y-630W |
6300 | 7000x1800x1050 | 1800 | 12～15 | 3～4 | 55x3 |
|
Q91Y-800W |
8000 | 7000x2000x1400 | 2000 | 15～20 | 3～4 | 55x4 |
|
Q91Y-1250W |
12500 | 8000x2000x1400 | 2000 | 20～26 | 3～4 | 55x6 |
