Features

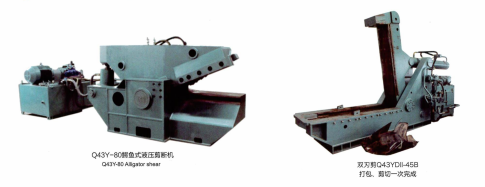

Q43Y series Crocodile hydraulic shearing machine,has compact structure and stable mechanical properties. Compared with the traditional method of flame cutting metal recycling, it has the characteristics of high power, low energy consumption, no metal burning loss and low processing cost. It is one of the necessary equipment for the protection processing of small and medium-sized metal drawing receiving stations and casting workshops in the machinery industry. This series of products is available for users to choose from 63-500 tons.
Model |
Maximum shear force (KN) |
Edge length (mm) |
Maximum shear size |
Shear frequency (full stroke) |
Motor (KW) |
|
Round steel (mm) |
0(mm) |
|||||
Q43Y-65E |
1600 | 600 | φ65 | 50x50 | >6 | 15 |
Q43Y-70E |
2200 | 600 | φ70 | 60x60 | >6 | 15 |
Q43Y-80 |
2500 | 1000 | φ80 | 70x70 | >6 | 22 |
Q43Y-85D |
3500 | 1000 | φ85 | 75x75 | >6 | 22 |
Q43Y-95B |
3500 | 1000 | φ95 | 85x85 | >6 | 22x2 |
Q43Y-95D |
3500 | 1000 | φ95 | 85x85 | >10 | 30x2 |
Q43YDII-45b |
2000 | 2020 | φ45 | 40x40 | >4 | 30 |
Q43YDII-50 |
2500 | 2020 | φ50 | 45x45 | >4 | 22x2 |
